38CrMoALA Material Twin Conical Screw Extruder for Two Cavity PVC Pipe Production Line

Ask Lasest Price
Brand Name :	Changyue
Supply Ability :	10 Set/Sets per Month
Price :	$30,000.00/sets >=1 sets
Delivery Time :	15 Days (1 - 1 Pieces) To Be Negotiated ( > 1 Pieces)

Add to Cart

Product Details
Company Profile

38CrMoALA Material Twin Conical Screw Extruder for Two Cavity PVC Pipe Production Line

Products Description

1. Process flow:
PVC powder + additive → mixing → spiral auto loader → twin screw extruder → mould → vacuum calibration tank →

haul off machine →laser pinter →cutting machine → stacker or automatic belling machine

2.Conical twin screw extruder

3.Die head. Due to the diameter, it can be single, double and four die head

4.Vacuum tank: due to diameter, it can be designing of single, double vacuum chambers

5.Haul-offs: due to diameter, it can be designing of double, three, four, six, eight caterpillars

6.Cutter: due to diameter, it can be designing of saw cutter or planetary cutter

7.stacker or automatic belling machine

8. laser printer: print the company name or brand name on pipe

Specification

item	value
Condition	New
Plastic Processed	PVC
Application	PIPE
Screw Design	Double-screw
	Counter-rotating conical Twin-screw
Screw Material	38CrMoALA
Screw diameter (mm)	51
Screw L/D Ratio	28:1
Screw Speed (rpm)	45rpm
Showroom Location	Egypt, Turkey, Italy, Brazil, Peru, Pakistan, India, Russia
Place of Origin	China
	Shandong
Brand Name	Changyue
Voltage	380V
Dimension(LWH)	28000mm/2500mm/2800mm
Power (kW)	37
Weight	8500KG
Warranty	1 Year
Key Selling Points	High Quality
Applicable Industries	Manufacturing Plant
Video outgoing-inspection	Provided
Warranty of core components	1 Year
Core Components	Motor, Engine, Gearbox, Screw
Machinery Test Report	Provided
Marketing Type	Ordinary Product

Product Paramenters

model	pipe diameter	output	max speed	motor	total length
SJSZ-65/132	20-63mm	180-250kg/h	6m/min*2	30kw	20m
SJSZ-80/156	50-110mm	300-400kg/h	8m/min*2	55kw	22m

Details Images

38CrMoALA Material Twin Conical Screw Extruder for Two Cavity PVC Pipe Production Line

Company Profile

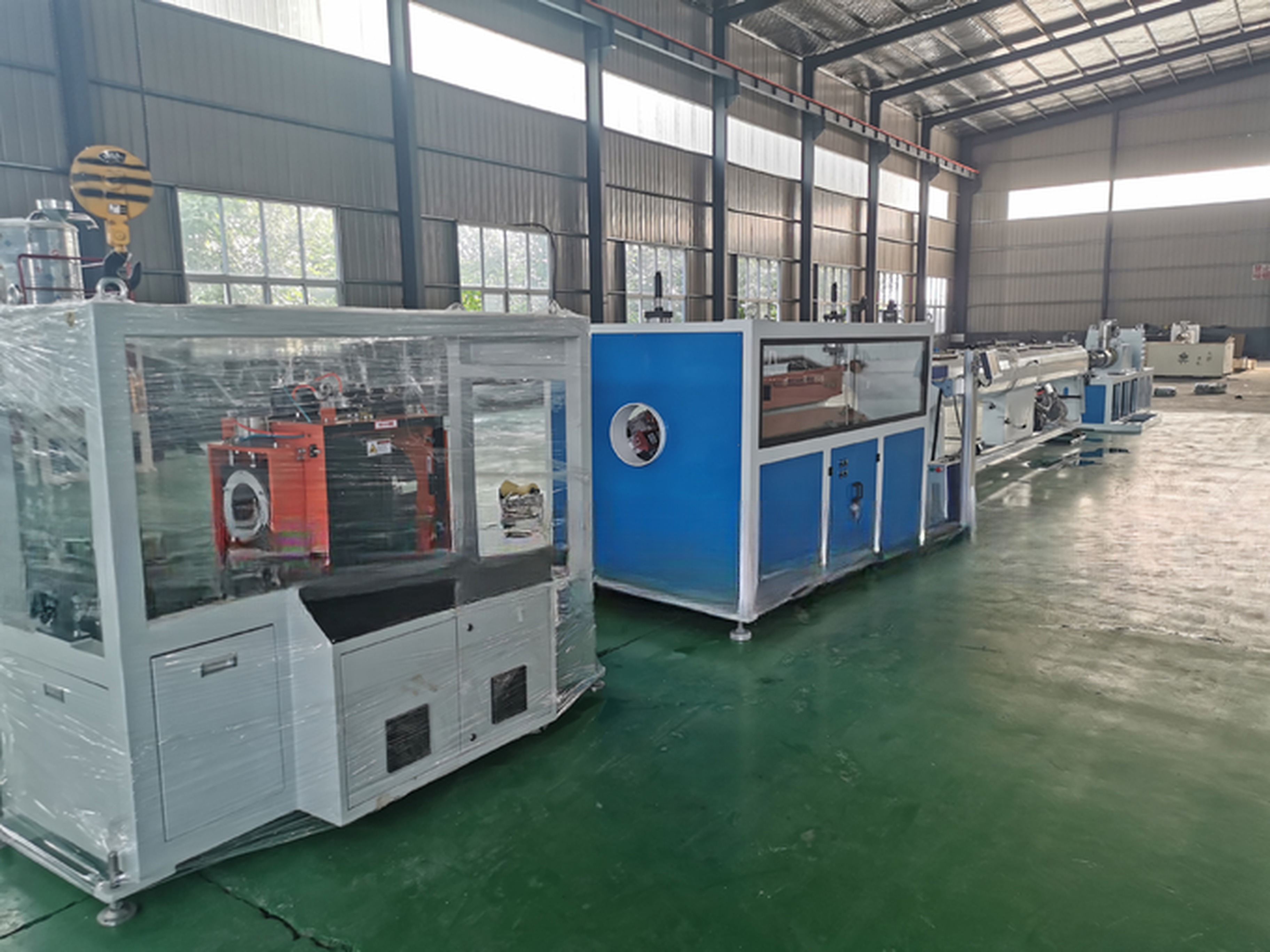

our workshop

Certifications

Why Choose Us

1. Low cost
* All the machine ,we make it ourself to reduce the cost of our customer.

2. Genuine product with excellent quality
* We choose our material very strict.
* All the material come to our factory must pass the quality test
* Substandard goods are returned to the supplier.

3. Engerneers available to serve oversea

4. Quick delivery
* The company provide just in time delivery with its streamlined supply chain.

5. Cost saving
* Se take strong attention to every detail in the manufacturing process.
* The quality control in our factory is very strict.
* All defective semi-manufactures must be treated again or reject.
* All the machine must be checked out ,then delivered to our customer.
* All about that pushing up the price,but get good quality machine.
* What we want to do is give our customer a good quality product with stable working and long lived.
