PMMA Board Plastic PE PP PS ABS HIPS Sheet Making Machine/ Extruder/ Production Line

plastic sheet extruder / plastic PMMA PS sheet board making machine

video: https://youtu.be/8Q4qR0ux_FQ

Product description
Raw Material:
1. can be virgin plastic material. PP, PE PS PMMA
2. can be recyclable material, like PP, PS granules FLAKES

SHEET SPECIFICATION:
Usual Sheet Width: 600-800-1000-1500 mm
Usual Sheet Thickness: 3-15 mm

APPLICATION:
1. This line is specially used for producing PP, PE PS, PMMA, HIPS, PLA sheet.
2. Surface Treatment: Adding some additives can improve intensity/toughness/rigidity, flame retardant, embossing, frosting, etc.
3. Application: Packing, printing, stationery, art works etc.
4. Main Products: Gift/ad/file bag/lamp cover/food packaging / luggage suitcase

MAIN FEATURES:
1. Screw with special mixing and plasticization function.
2. Coat hanger T-type die head with two throttle design enable to regulate the sheet thickness accurately.
3. Horizontal. vertical, 45 degree incline type 3 Roller Calendars may be lifted freely, sheet thickness shall be regualted by screw and pressing roller.
4. Separate roller temperature control system to control the temperature of pressing roller to gain even sheet thickness.
5. Exact slicing machine, excellent cross surface.
6. Winder with big torque motor, and it's speed and tension force adjustable.
7. Automatic metering to set the length of the products.

Technical data

Summary
Suitable resin	PP/PE/PS /PMMA
Sheet width	400-2000mm(customized)
Sheet thickness	0.2-5mm(as requirement)
Capacity	150-1000kg/h
Power supply	380v 3phase 50HZ

mixer & drier volum: 1000 kg

drying power: 11 lw

material: SS

Plastic PE PP PS ABS HIPS PMMA Sheet Production Line/ Plastic Sheet Extrusion Machine / Extruding Machine / Plastic Extruder

1. vacuum auto loader

2. one extruder or two extruder for single / multilayer sheet

3. exhausted screw

4. hydraulic mesh changer

5. JC times T die

6. sheet width: 600-300 mm

7. sheet thickness: 0.2-5 mm

8. main motor: Siemens Beide

9. melting pump if needed

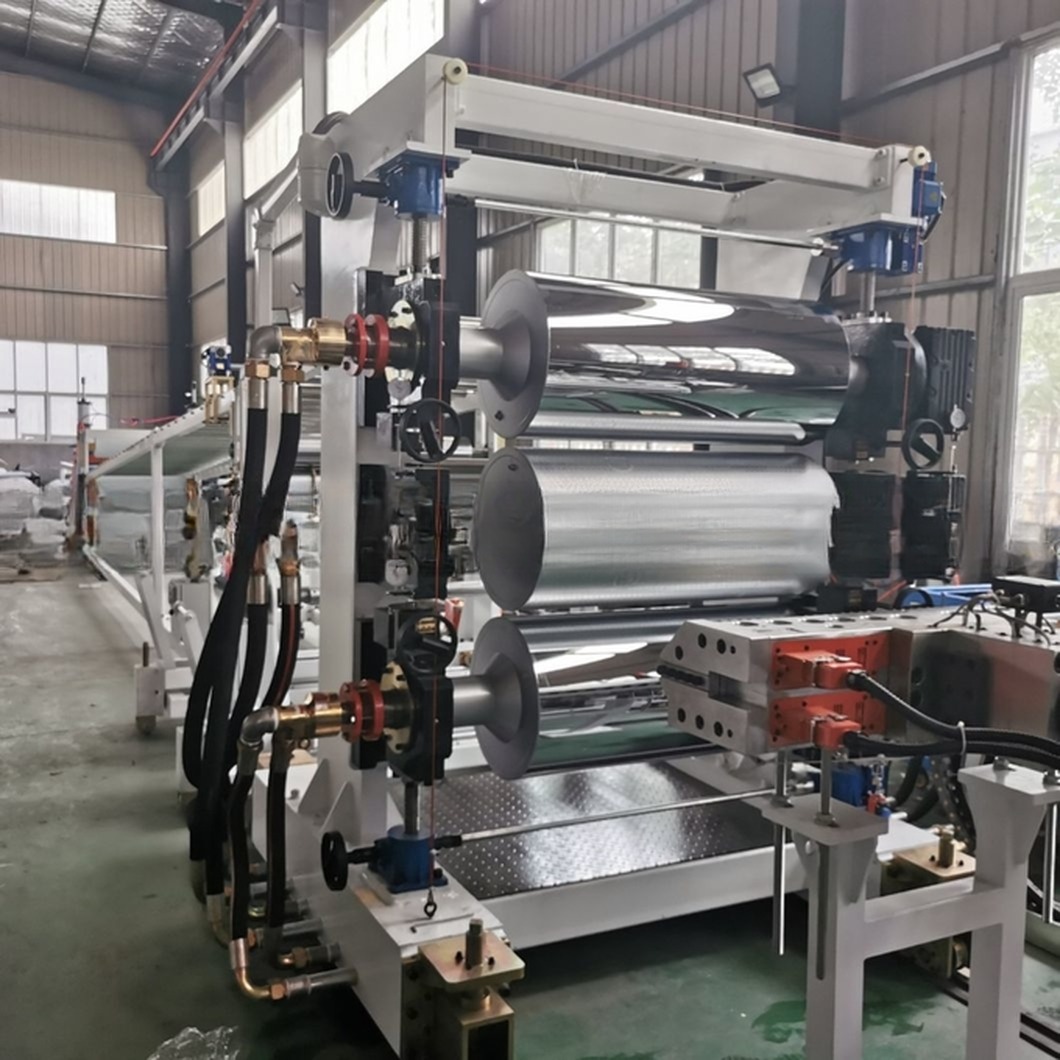

1. vertical three roller calender

2. roller diameter: 400 / 450 mm

3. flange type rotating jointor

4. roller temperature controlling unit

5. roller mirror treatment

6. Surface hardness: HRC55-58
7.Surface roughness: Ra<=0.025um

8. up & down movement by motor

9. the rollers can do embossment

1. cooling bracket length: 18 m

2. transmission rollers: SS

1. haul off: two rubber rollers

2. protection film lamination device

3. meter counter: Autonics from Korea

1. shear cutter

2. cutting width: according to requirement

3. cutting thickness: 1-5 mm

Our customer & exhibition

Packing
