PE sheet production line for geocell1). Geocell introduction:
Geocell Production Line is used to produce plastic geocell, which is a kind of geo-product
with alveolate and three-dimensional structure which processed the
thermoplastic sheet by the ultrasonic welding machine and other
methods.
Its special three-dimensional structure makes it possible to form
the different viscous force, different reinforcing bar intensity
and different thickness of cushion. It is widely used in the fields
of the reinforcing of railway, strengthening roadbed, protect of
field bank, building of earth protection wall, and so on.
2). Geocell Application:
a.Solid railway roadbed. Geocell Production Line
b. Highway's soft foundation.
c. Withstand truck force embankments,retaining wall.
d. Running shallow river.
e. Pipeline and the sewer's support structure.
f. To prevent landslides and load force by the hybrid wall.
g. To use independent wall ,wharf ,breakwater and so on.
h. To govern the desert, beaches and the riverbed, banks.3). Geocell Line Advantages:
a. Siemens, ABB etc to assure the machine stable running.
b.More than 300 Geocell Lines have been delivered to the Customers
from the World. Our experience is worth trusted.
Product Parameters
| Equipment list |
| 1.single screw extruder | 2. Hydraulic mesh changing system |
| 3. Die mold | 4.Electric control system |
| 5.Three roller calender | 6. Roll temperature regulator |
| 7. Transmission and side cutting | 8.Haul off machine |
| 9. Length Measurement | 10. Cutter |
| 11. Extruder vacuum feeder | 12. Driers |
| Summary |
| Suitable resin | PP/PE/PS/ABS |
| Sheet width | 400-2000mm(customized) |
| Sheet thickness | 0.2-2mm(as requirement) |
| Capacity | 150-1000kg/h |
| Power supply | 380V 3phase 50HZ |
Detailed Photos
1. drier & mixer volum: 1000 kg / 1500 kg
2. material: SS

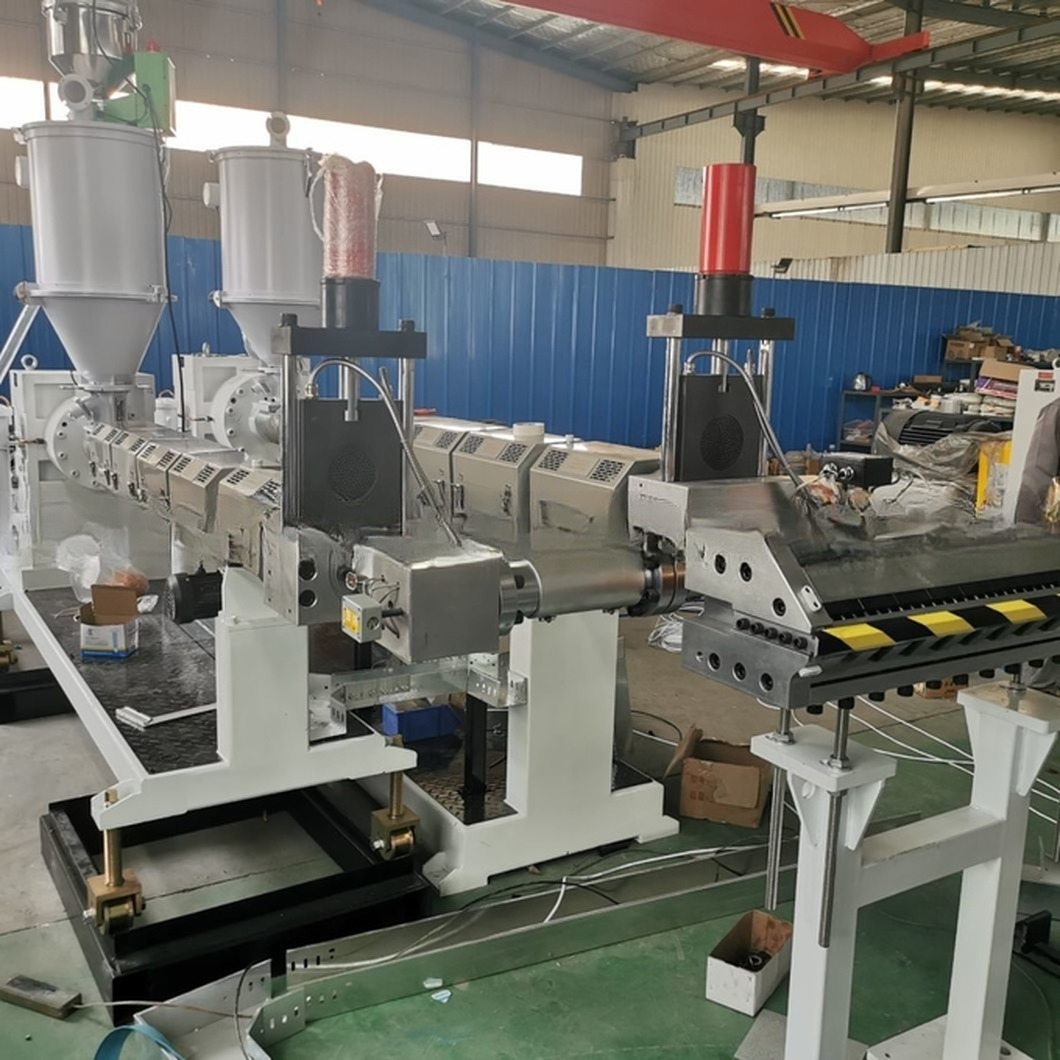

1. vacuum auto loader
2. single screw extruder
3. one extruder or two extruder for single / multilayer sheet
4. exhausted screw
5. hydraulic mesh changer / filter & hydraulic station
6. T die: brand: JC times T die
7. sheet width: 600-300 mm
8. sheet thickness: 0.5-5 mm
9. main motor: Siemens Beide
10. melting pump if needed
1. vertical three roller calender / 45degreee calender
2. roller diameter: 400 / 450 / 500 mm
3. flange type rotating jointor
4. roller temperature controlling unit
5. roller mirror treatment
6. Surface hardness: HRC55-58
7.Surface roughness: Ra<=0.025um
8. up & down movement by motor
9. the rollers can do embossment
1. cooling bracket length: 18 m
2. transmission rollers: SS
3. slitting device: quantity according to requirement
1. haul off: two rubber rollers
2. protection film lamination device
3. meter counter: Autonics from Korea
1. shear cutter
2. cutting width: according to requirement
3. cutting thickness: 1-5 mm
control panel
PLC control / not PLC control
inverter: ABB / Delta / according to customer requirement
contactor & relays: Siemens
switch: CHNT
touch screen: Siemens
PLC: Siemens
After Sales Service
1. After the machines are finished, the seller will test all
machines before shipment. If the buyer can not come to test the machine,
we will test the machines and send the sample to buyer.
2..After shipment, the seller will send one or two technicians to the buyer's factory to help the buyer install the machine and train
workers for buyer.
3. We will supply all electricity drawing, machine installation
drawing.
4. When make shipment, we will put some spare electricity parts for free, like the barrel hearers, thermcouples, breakers, relays,
and other items which is easier broken.
