Changyue Professional Geocell Making Machine Motor WEG/Siemens Geocell Production Line

Ask Lasest Price
Brand Name :	Changyue
Price :	$60,000.00/sets >=1 sets
Delivery Time :	15 Days (1 - 1 Pieces) To Be Negotiated ( > 1 Pieces)

Add to Cart

Product Details
Company Profile

Changyue Professional Geocell Making Machine Motor WEG/Siemens Geocell Production Line

Product Description

HDPE sheet extrusion machine for Geocell
HDPE sheet production line for Geocell
HDPE sheet production line for Geocell
PP sheet / board extrusion machine / production line
HDPE / PP / ABS sheet extrusion machine / production line
HDPE sheet extrusion production line used for Geocell
PP sheet / board extrusion production line
PP/PE/ABS Sheet/Board Production Line
PP thermo forming sheet production line
Geocell sheet production line
PE sheet production line for geocell

Product Parameters

Equipment list
1.single screw extruder		2. Hydraulic mesh changing system
3. Die mold		4.Electric control system
5.Three roller calender		6. Roll temperature regulator
7. Transmission and side cutting		8.Haul off machine
9. Length Measurement		10. Cutter
11. Extruder vacuum feeder		12. Driers

Summary
Suitable resin		PP/PE/PS/ABS
Sheet width		400-2000mm(customized)
Sheet thickness		0.2-2mm(as requirement)
Capacity		150-1000kg/h
Power supply		380V 3phase 50HZ

Detailed Photos

Changyue Professional Geocell Making Machine Motor WEG/Siemens Geocell Production Line

1. drier & mixer volum: 1000 kg / 1500 kg

2. material: SS

1. vacuum auto loader
2. single screw extruder
3. one extruder or two extruder for single / multilayer sheet
4. exhausted screw
5. hydraulic mesh changer / filter & hydraulic station
6. T die: brand: JC times T die
7. sheet width: 600-300 mm
8. sheet thickness: 0.5-5 mm
9. main motor: Siemens Beide
10. melting pump if needed

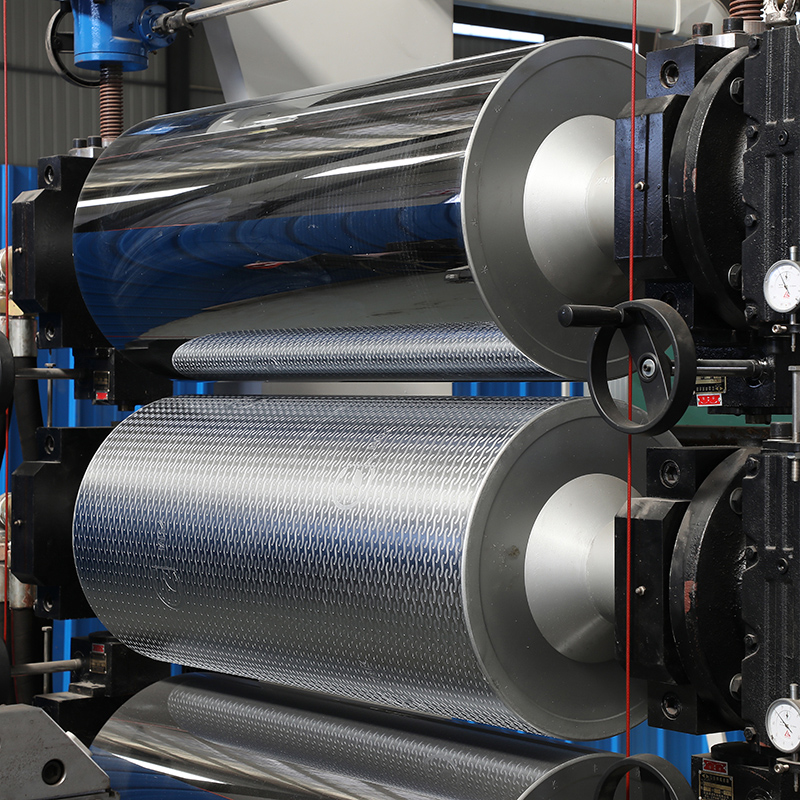

1. vertical three roller calender / 45degreee calender

2. roller diameter: 400 / 450 / 500 mm
3. flange type rotating jointor
4. roller temperature controlling unit
5. roller mirror treatment
6. Surface hardness: HRC55-58
7.Surface roughness: Ra<=0.025um
8. up & down movement by motor
9. the rollers can do embossment

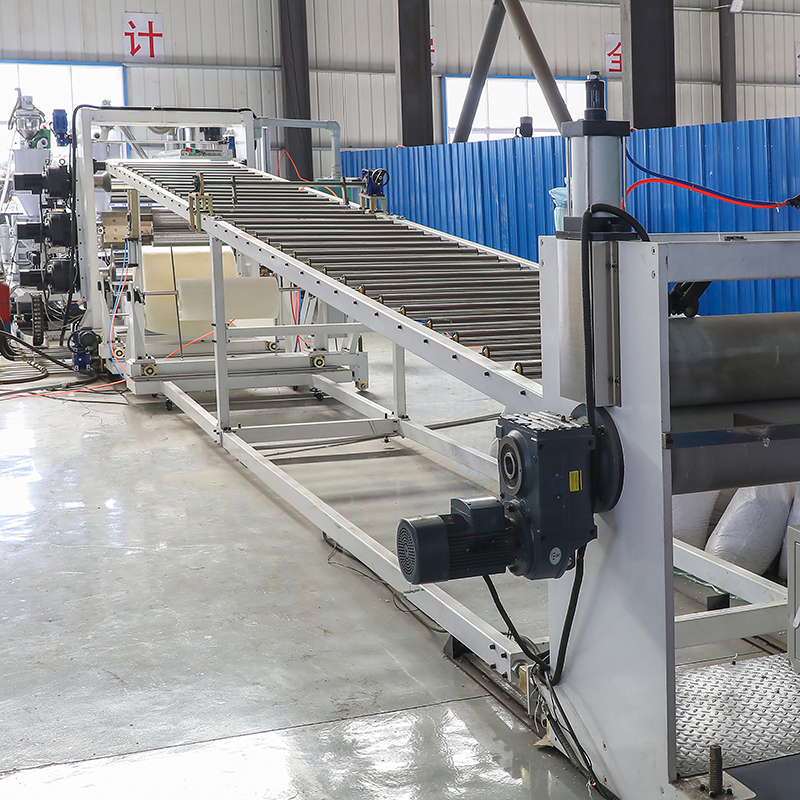

1. cooling bracket length: 18 m
2. transmission rollers: SS
3. slitting device: quantity according to requiremen

1. haul off: two rubber rollers
2. protection film lamination device
3. meter counter: Autonics from Korea

1. shear cutter
2. cutting width: according to requirement
3. cutting thickness: 1-5 mm

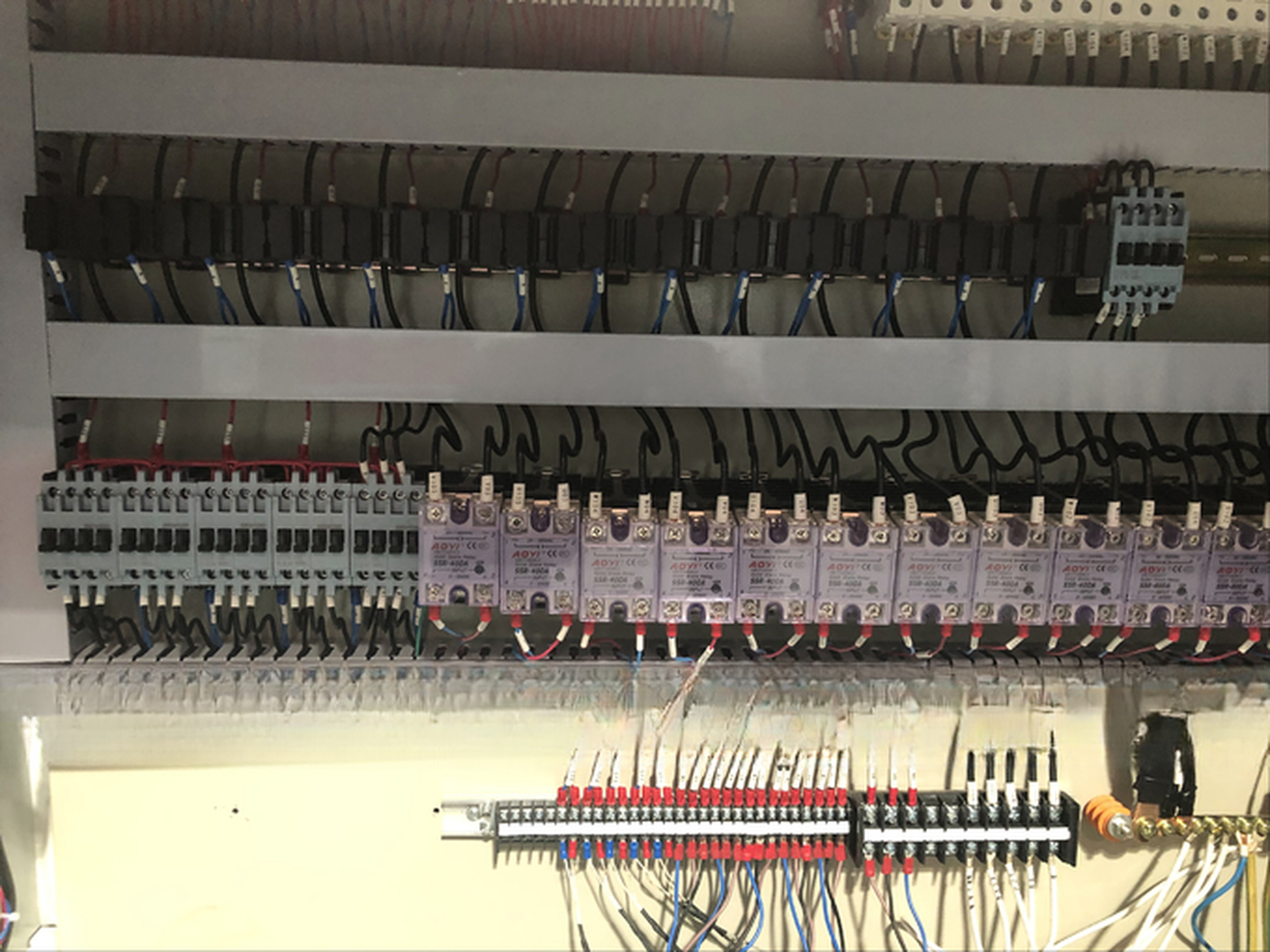

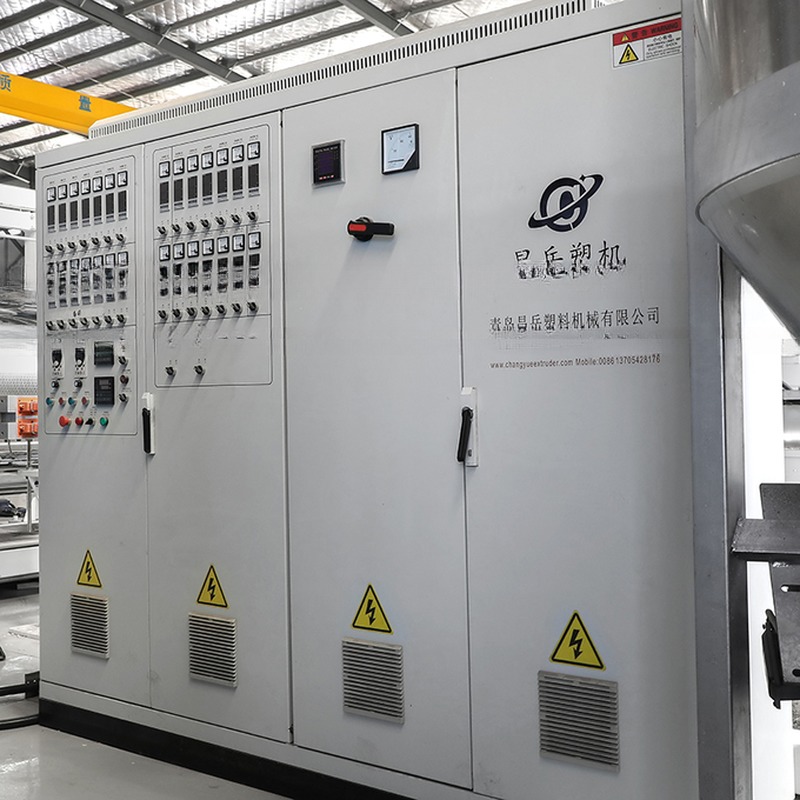

control panel

PLC control / not PLC control

inverter: ABB / Delta / according to customer requirement

contactor & relays: Siemens

switch: CHNT

touch screen: Siemens

PLC: Siemens

finished Geo cell

SLITTING AND ONLINE PUNCHING MACHINE

Certifications

After Sales Service

1. After the machines are finished, the seller will test all machines before shipment. If the buyer can not come to test the machine,
we will test the machines and send the sample to buyer.

2..After shipment, the seller will send one or two technicians to the buyer's factory to help the buyer install the machine and train
workers for buyer.
3. We will supply all electricity drawing, machine installation drawing.
4. When make shipment, we will put some spare electricity parts for free, like the barrel hearers, thermcouples, breakers, relays,
and other items which is easier broken.
