    150-200Kg/H PVC Wall Panel Production Line PVC Wall Panel Extrusion Machine

    Ask Lasest Price
    Supply Ability : 150 -200 Kg/H
    Brand Name : Changyue
    Delivery Time : 15 Days (1 - 1 Pieces) To Be Negotiated ( > 1 Pieces)
    • Product Details
    • Company Profile

    150-200Kg/H PVC Wall Panel Production Line PVC Wall Panel Extrusion Machine

    30-Day Return Refunds for SJSZ55 PVC Ceiling Wall Panel Production Line in Market
    WPC ceiling wall panel production line/pvc wall panel making machine
    Product description
    This PVC/WPC ceiling wall panel making machine adopts conical twin screw sepcially used for the extruder,matching with different standard of profile die and auxiliary device, it is used to extrude PVC ceiling panel , PVC wall panel, PVC trunking profile and other PVC profile. It adopts vacuum cailbrating, online film transferring machine,auto haul-off and cutting device,and material discharge. Features of the production line,automatic temperature controlling, stable performance,and easy operation.
    Machine list

    Itemcomponentquantity
    1double screw extruder1 set
    2mouldas your require
    3vacuum calibration tank1 set
    4haul off machine1 set
    5cutter1 set
    6stacker1 set

    Technical data
    ModelSJSZ51SJSZ65SJSZ80
    screw diameter(mm)51/10565/13280/156
    screw rotation speed(r/min)1-301-34.71-36.9
    effective length of screw(mm)105014301800
    main motor power(kw)223755
    barrel heating power(kw)182436
    capacity(kg/h)110250380
    central height(mm)1000
    net weight(kg)320050006500

    Product details

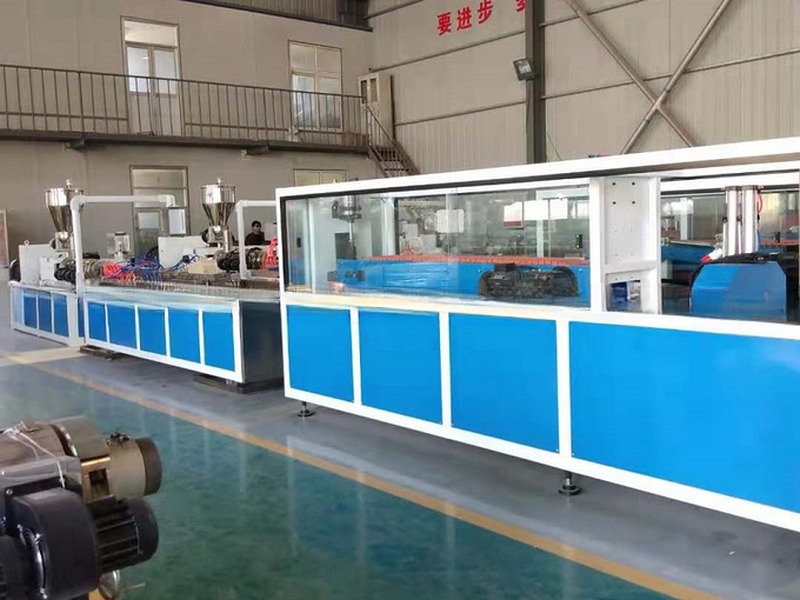

    PVC Ceiling Wall Panel Production Line
    PVC Ceiling Wall Panel Production Line
    PVC Ceiling Wall Panel Production Line
    PVC Ceiling Wall Panel Production Line
    Our customer & exhibition
    PVC Ceiling Wall Panel Production Line
    PVC Ceiling Wall Panel Production Line
    PVC Ceiling Wall Panel Production Line

    Packing
    PVC Ceiling Wall Panel Production Line
